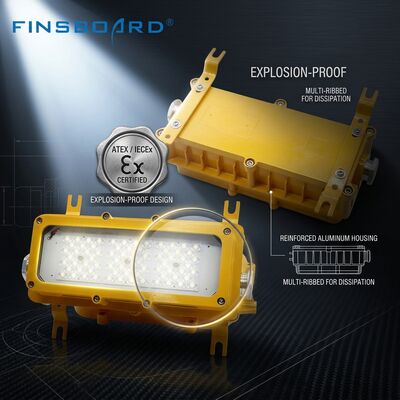

LUMILEDS LM-80 300W LED Explosion Proof Light ATEX Ex db mb IIb T6 100-120LM/W IP65 Hazardous Area Fixture
제품 상세 정보:
| 원래 장소: | 중국 |
| 브랜드 이름: | RFEPL |
| 인증: | CE, ROHS, CCC, ATEX |
| 모델 번호: | RFEPL8280-300W |
결제 및 배송 조건:
| 최소 주문 수량: | 1개 조각 |
|---|---|
| 가격: | USD 299-599/Piece |
| 포장 세부 사항: | EPE 폼 내부 보호 기능이 있는 K=K 수출용 상자 |
| 배달 시간: | 영업일 기준 15-25일 |
| 지불 조건: | T/T,L/C,웨스턴 유니온 |
| 공급 능력: | 달 당 5000 조각 |
|
상세 정보 |
|||
| 힘: | 300W | 빛나는 효능: | 100-120 루멘 / Ｗ |
|---|---|---|---|
| LED 칩 브랜드: | 룸라이드 | LED 인증: | LM-80 |
| 입력 전압: | AC100-277V | 역률: | ≥0.95 |
| 인증: | CE, ROHS, CCC, ATEX | 방폭 규격: | Ex db mb IIb T6 |
| 유입 방지: | IP65 | 비양생: | WF2 |
| 서지 보호: | 6KV | 연색성 지수: | CRI ≥80 |
| 하우징 재료: | 알루미늄 + 강화 유리 | 빔 각 선택: | 30' /60' /90' |
| 케이블 사양: | 1.0mm² | 표면 마감: | 황색/회색 회화 |
| 등급 수명: | 50,000시간 | 작동 온도: | -40°C ~ +60°C |
| 작동 습도: | 10% ~ 90% RH | ||
| 강조하다: | 300W LED explosion proof light,ATEX certified hazardous area fixture,IP65 rated explosion proof lighting |
||
제품 설명
The RFEPL8280-300W LED Explosion Proof Light represents the pinnacle of hazardous area illumination engineering. This fixture harnesses genuine LUMILEDS LED chips with LM-80 certification, delivering exceptional luminous efficacy of 100-120 lumens per watt. The combination of premium chip technology and advanced optical design ensures superior light output with optimal energy efficiency for oil refineries, chemical processing plants, offshore platforms, and mining operations.
Technical Specifications
| Model Number | RFEPL8280-300W |
| Rated Power | 300W |
| Luminous Efficacy | 100-120 LM/W |
| LED Chip Brand | LUMILEDS (LM-80 Certified) |
| Input Voltage | AC100-277V, 50/60Hz |
| Power Factor | ≥0.95 |
| Explosion Proof Standard | Ex db mb IIb T6 |
| Ingress Protection | IP65 |
| Weather Protection | WF2 |
| Surge Protection | 6KV |
| Color Rendering Index | CRI ≥80 |
| Housing Material | Die-Cast Aluminum + Tempered Glass |
| Beam Angle Options | 30° / 60° / 90° |
| Surface Finish | Electrostatic Powder Coating (Yellow / Grey) |
| Cable Specification | 1.0mm² (Fire-Resistant) |
| Rated Lifespan | 50,000 Hours (L90) |
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | 10% to 90% RH (Non-Condensing) |
| Certifications | CE, ROHS, CCC, ATEX |
Key Features
- ATEX certified for Zone 1 and Zone 2 hazardous locations
- Genuine LUMILEDS LM-80 certified LED chips
- High efficiency 100-120 lumens per watt performance
- Robust die-cast aluminum construction with tempered glass
- IP65 rated for dust and water protection
- Wide operating temperature range (-40°C to +60°C)
- 6KV surge protection for electrical stability
- Multiple beam angle options for flexible application
Industrial Applications
This explosion-proof light is engineered for demanding hazardous area illumination across multiple industries. It provides reliable lighting for oil and gas drilling platforms, refinery process areas, pipeline compressor stations, and fuel storage tank farms. Chemical and petrochemical plants utilize this fixture for safe illumination of reactor areas, solvent storage zones, and mixing vessels. Mining operations deploy it in coal handling areas, conveyor galleries, and processing plants where combustible dust and methane gas present ignition risks. Additional applications include pharmaceutical manufacturing clean rooms, paint spray booths, grain silos, and wastewater treatment facilities.
Quality Assurance & Packaging
Each fixture undergoes comprehensive end-of-line testing including photometric measurement, high-potential electrical testing, and full ATEX compliance verification. Products are manufactured in ISO 9001 certified facilities and individually packaged in anti-static EPE foam within double-wall export-grade corrugated cartons with reinforced corner protection. Every shipment includes quality certificates, ATEX compliance declaration, installation manual, and a 3-year manufacturer warranty.
Certification & Safety
ATEX Ex db mb IIb T6 certified for use in environments with flammable gases, vapors, and combustible dusts. Compliant with CE, ROHS, and CCC standards for global market acceptance.
