600W LED Explosion Proof Flood Light 30° Boom Pole Long-Range Site Perimeter Grey ATEX IIB T6 IP65 RFEPL8280 Lighting
제품 상세 정보:
| 원래 장소: | 중국 광둥 |
| 브랜드 이름: | ECER |
| 인증: | ATEX Ex db mb IIB T6, CE, ROHS, CCC |
| 모델 번호: | RFEPL8280-600W-BM30 |
결제 및 배송 조건:
| 최소 주문 수량: | 10개 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 박스 package+ 버블 또는 맞춤화되곤 것처럼 |
| 배달 시간: | 10-15일 또는 확인 |
| 지불 조건: | T/T, 서부 동맹 |
| 공급 능력: | 5000pcs/월 |
|
상세 정보 |
|||
| 힘: | 600W | 조명 효율성: | 100-120lm/w |
|---|---|---|---|
| LED 칩: | 루미레드 SMD (LM-80) | 빔 각도: | 30° |
| 색온도: | 5000K | IP 등급: | IP65 |
| 방폭마크: | Ex db mb IIB T6 - IP65 - WF2 | 번개 보호: | 6KV |
| 재료: | 알루미늄 ADC12 + 강화유리 | 마치다: | 회색 |
| 인증: | ATEX, CE, ROHS, CCC | 일생: | 50,000시간 |
| 작동 온도: | -40°C ~ +60°C | ||
| 강조하다: | 600W explosion proof LED flood light,ATEX IIB T6 explosion proof lighting,long-range explosion proof perimeter light |
||
제품 설명

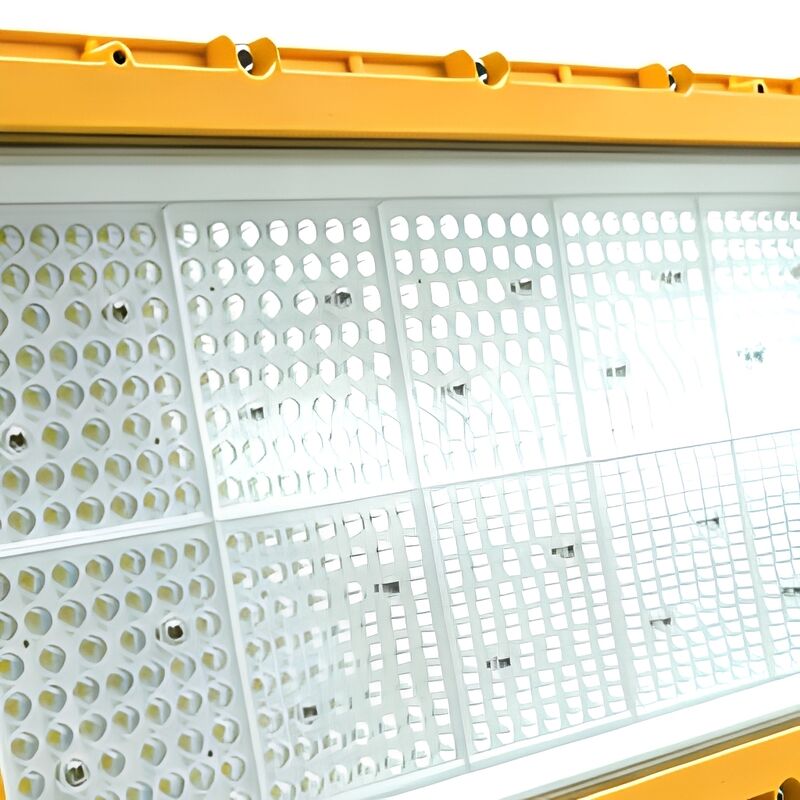

600W LED Explosion Proof Flood Light - 30° Boom Pole Long-Range Site Perimeter
The RFEPL8280-600W-BM30 is a 600W LED explosion proof flood light from the RFEPL8280 series, delivering 72000lm luminous flux with 120lm/W efficiency. ATEX Ex db mb IIB T6 certified with IP65 WF2 protection, this Grey finish floodlight features LUMILEDS SMD chip technology (LM-80 tested), 6KV lightning protection, and all-stainless-steel hardware passing 500-hour salt spray testing.
Key Features
- LUMILEDS SMD Technology - LM-80 tested premium LED chips delivering 120lm/W with CRI ≥80 and 50,000-hour L70 lifespan
- ATEX Ex db mb IIB T6 Certified - Zone 1/Zone 2 gas and Zone 21/Zone 22 dust hazardous atmospheres, temperature classes T1-T6
- 30° Beam Configuration - 30° Boom Mount Long-Range High Mast for precise light distribution
- Grey Paint Finish - Durable powder coat finish with 500-hour salt spray certification on all stainless steel hardware
- Die-Cast Fin Heat Dissipation - Advanced aluminum substrate thermal management for reliable 600W continuous operation
- 6KV Lightning Protection - Built-in surge suppression for exposed outdoor industrial installations
- 180° Adjustable Bracket - Flexible angle adjustment with six mounting configurations available
- IP65 Waterproof WF2 - Sealed against dust and water jets with corrosion-resistant design
- Universal AC 100-277V - Power factor ≥0.95, compatible with global electrical systems
- CE, ROHS, CCC Certified - Full international compliance for global deployment
Applications
Boom/pole-mounted long-distance illumination for access roads and site perimeters:
- Oil extraction, refining and petrochemical processing
- Offshore platforms, FPSOs and drilling rigs
- Chemical storage, mixing and manufacturing facilities
- Electric power generation and distribution stations
- Military and defense hazardous installations
Technical Specifications
| Model Number | RFEPL8280-600W-BM30 |
| Item No. | RFEPL8280 |
| Power | 600W |
| Light Efficiency | 100-120lm/W |
| LED Chip | LUMILEDS SMD (LM-80) |
| Beam Angle | 30° |
| CRI | ≥80 |
| Explosion-Proof Mark | Ex db mb IIB T6 - IP65 - WF2 |
| Lightning Protection | 6KV |
| Material | Aluminum ADC12 + Tempered Glass |
| Finish | Grey |
| Mounting | Ceiling / Boom / Bracket / Wall / Flange / Guardrail |
| Certification | ATEX, CE, ROHS, CCC |
| Lifetime | 50,000 Hours |
| Operating Temperature | -40°C to +60°C |
The RFEPL8280 series delivers industrial-grade hazardous area illumination with LUMILEDS LED efficiency and ATEX-certified safety. Every unit is factory-tested for explosion-proof integrity and photometric performance.
For bulk pricing, OEM customization, or technical consultation, please contact our sales team.
