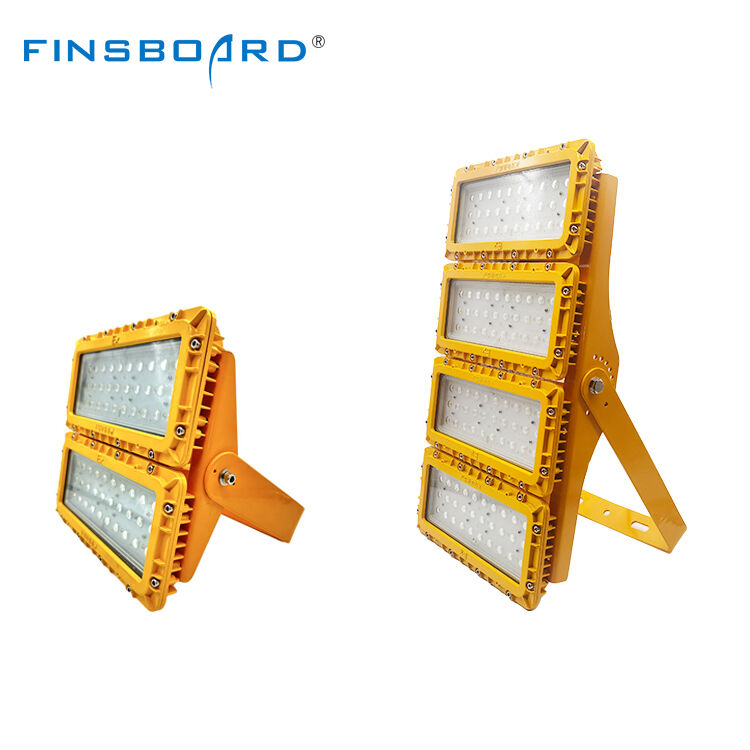

600W LED Explosion Proof Flood Light High Bay Warehouse Compressor Hall 10m+ Mounting IP65 Die-Cast Aluminum ADC12
제품 상세 정보:
| 원래 장소: | 중국 광둥 |
| 브랜드 이름: | ECER |
| 인증: | ATEX II 2G Ex d IIC T6 Gb, CE, ISO 9001:2015 |
| 모델 번호: | EPFL-600W-HB |
결제 및 배송 조건:
| 최소 주문 수량: | 10개 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 박스 package+ 버블 또는 맞춤화되곤 것처럼 |
| 배달 시간: | 10-15일 또는 확인 |
| 지불 조건: | T/T, 서부 동맹 |
| 공급 능력: | 5000pcs/월 |
|
상세 정보 |
|||
| 힘: | 600W | 광속: | 78000루멘 |
|---|---|---|---|
| 효능: | 130lm/W | 빔 각도: | 90° |
| 색온도: | 5000K | LED 칩: | 브리지룩스 SMD 3030 |
| IP 등급: | IP65 | 하우징 재료: | 다이캐스트 알루미늄 ADC12 |
| 작동 온도: | -40°C ~ +60°C | 인증: | ATEX II 2G Ex d IIC T6 Gb |
| 수명: | ≥50,000시간 L70 | 보증: | 5년 |
| 강조하다: | 600W explosion proof LED flood light,high bay warehouse LED flood light,IP65 die-cast aluminum flood light |
||
제품 설명
600W LED Explosion Proof Flood Light - High Bay Warehouse Compressor Hall
The EPFL-600W-HB is a 600W LED explosion proof flood light delivering 78000lm luminous flux with 130lm/W efficiency. ATEX II 2G Ex d IIC T6 Gb certified with IP65 protection, this purpose-engineered floodlight features Die-Cast Aluminum ADC12 for demanding classified area applications.
Key Features
- 600W High-Efficiency Output - 78000lm total luminous flux at 130lm/W, replacing traditional HID fixtures with superior energy performance
- ATEX II 2G Ex d IIC T6 Gb Certified - Full explosion-proof certification for Zone 1/Zone 2 gas and Zone 21/Zone 22 dust hazardous atmospheres
- High-Bay Optimized Optics - Specialized reflector design for mounting heights of 10-20m, delivering uniform floor-level illumination in compressor halls, turbine buildings, and high-ceiling hazardous warehouses
- IP65 Protection - Fully sealed against environmental ingress for reliable outdoor and industrial operation
- High Transmittance Tempered Glass - Safety glass lens with excellent light transmission and impact resistance
- Die-Cast Fin Heat Dissipation - Advanced thermal management ensuring consistent 600W performance and extended LED lifespan
- 180° Adjustable Bracket - Flexible angle adjustment for precise positioning in any installation scenario
- Universal Voltage Input - Compatible with global power distribution systems for simplified international deployment
- 5-Year Warranty - Backed by ≥50,000 hours L70 rated lifespan and factory quality testing
Applications
Engineered for Petrochemical warehouses, compressor halls, turbine buildings, and high-bay hazardous industrial facilities exceeding 10m mounting height:
- Oil and gas exploration, production and refining facilities
- Petrochemical processing and chemical manufacturing plants
- Offshore platforms, FPSOs and marine terminals
- Pharmaceutical and food processing classified zones
- Mining, tunneling and underground hazardous spaces
- Emergency and safety-critical lighting applications
Technical Specifications
| Model Number | EPFL-600W-HB |
|---|---|
| Power Consumption | 600W |
| Luminous Flux | 78000lm |
| Efficacy | 130lm/W |
| Beam Angle | 90° |
| Color Temperature | 5000K |
| LED Chip | Bridgelux SMD 3030 |
| IP Rating | IP65 |
| Housing Material | Die-Cast Aluminum ADC12 |
| Operating Temperature | -40°C to +60°C |
| Certification | ATEX II 2G Ex d IIC T6 Gb |
| Lifespan | ≥50,000 Hours L70 |
| Warranty | 5 Years |
Each unit undergoes 100% factory testing of the explosion-proof enclosure integrity and photometric performance verification. Our 5-year warranty reflects confidence in the long-term reliability of the EPFL-600W-HB design.
For bulk orders, OEM customization, or technical inquiries, please contact our sales team.
