600W LED Explosion Proof Flood Light 30° Ultra-Narrow High Mast ATEX IIB T6 IP65
제품 상세 정보:
| 원래 장소: | 중국 광둥 |
| 브랜드 이름: | ECER |
| 인증: | ATEX Ex db mb IIB T6, CE, ROHS, CCC, ISO 9001:2015 |
| 모델 번호: | RFEPL8280-600W-NB30 |
결제 및 배송 조건:
| 최소 주문 수량: | 10개 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 박스 package+ 버블 또는 맞춤화되곤 것처럼 |
| 배달 시간: | 10-15일 또는 확인 |
| 지불 조건: | T/T, 서부 동맹 |
| 공급 능력: | 5000pcs/월 |
|
상세 정보 |
|||
| 힘: | 600W | 조명 효율성: | 100-120lm/w |
|---|---|---|---|
| LED 칩: | 루미레드 SMD (LM-80) | 빔 각도: | 30° |
| 입력 전압: | AC 100-277V | IP 등급: | IP65 |
| CRI: | ≥80 | 역률: | ≥0.95 |
| 재료: | 알루미늄 + 강화 유리 | 방폭마크: | Ex db mb IIB T6 - IP65 - WF2 |
| 번개 보호: | 6KV | 인증: | ATEX, CE, ROHS, CCC |
| 일생: | 50,000시간 | 작동 온도: | -40°C ~ +60°C |
| 소금 스프레이 테스트: | 500시간(스테인리스 스틸) | ||
| 강조하다: | 600W explosion proof LED flood light,30° ultra-narrow explosion proof light,ATEX IIB T6 high mast light |
||
제품 설명

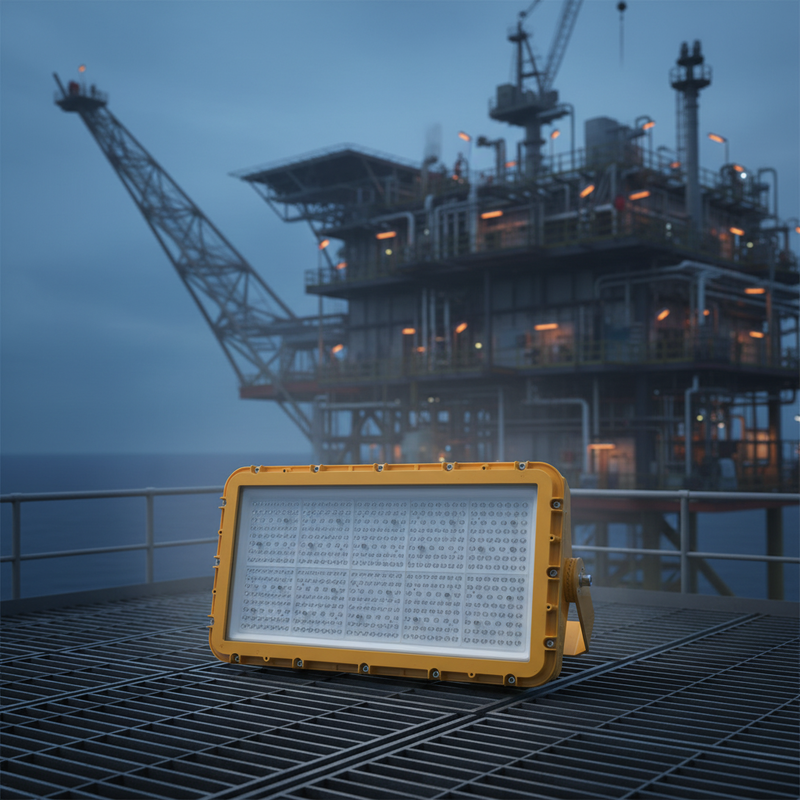

600W LED Explosion Proof Flood Light 30° Ultra-Narrow High Mast ATEX IIB T6 IP65
The RFEPL8280-600W-NB30 is a 600W LED explosion proof flood light from the RFEPL8280 series, featuring Ultra-narrow 30° high-intensity spot beam with LUMILEDS SMD chip technology delivering 100-120lm/W efficiency. ATEX Ex db mb IIB T6 certified with IP65 WF2 protection, 6KV lightning protection, and stainless steel hardware passing 500-hour salt spray testing.
Key Features
- LUMILEDS SMD Chip Technology - Premium LM-80 tested LED chips delivering 100-120lm/W with CRI ≥80 for accurate color rendering in hazardous environments
- ATEX IIB T6 Certified - Ex db mb IIB T6 explosion-proof rating for IIA, IIB, IIC explosive atmospheres, temperature classes T1-T6, Zone 1/Zone 2 gas and Zone 21/Zone 22 dust
- 30° Beam Configuration - Ultra-narrow 30° high-intensity spot beam optimized for the specific application requirements
- 180° Adjustable Mounting Bracket - Flexible angle adjustment for precise light positioning in any installation scenario
- Die-Cast Fin Heat Dissipation - Advanced thermal management with high-conductivity aluminum substrate ensuring reliable 600W continuous operation
- 6KV Lightning Protection - Built-in surge protection for exposed outdoor installations in lightning-prone regions
- High Transmittance Tempered Glass - Safety glass lens with ≥92% light transmission and impact resistance
- All Stainless Steel Hardware - 500-hour salt spray certified fittings for long-term corrosion resistance
- 600W Ultra-Narrow 30° Beam - Maximum throw distance exceeding 150 meters with 600W power, engineered for flare stacks, tall chimneys, and perimeter security lighting
- IP65 Waterproof WF2 - Fully sealed against dust and water jets, corrosion-resistant for harsh industrial atmospheres
- Universal AC 100-277V Input - Power factor ≥0.95, compatible with global electrical distribution systems
6-in-1 Versatile Mounting
The RFEPL8280 series supports all standard mounting configurations:
- Ceiling mount
- Boom mount
- Bracket mount
- Wall mount
- Flange mount
- Guardrail mount
Applications
Engineered for large high mast towers, flare stacks, chimney tops, and long-distance perimeter illumination in refineries:
- Oil extraction, refining and petrochemical processing
- Offshore platforms, FPSOs and drilling rigs
- Chemical storage, mixing and processing facilities
- Electric power generation and distribution stations
- Military and defense hazardous installations
- Combustible dust environments (Zone 21, Zone 22)
- Emergency and normal lighting in classified areas
Technical Specifications
| Model Number | RFEPL8280-600W-NB30 |
| Item No. | RFEPL8280 |
| Power | 600W |
| Light Efficiency | 100-120lm/W |
| LED Chip | LUMILEDS SMD (LM-80) |
| Beam Angle | 30° |
| CRI | ≥80 |
| Power Factor | ≥0.95 |
| Explosion-Proof Mark | Ex db mb IIB T6 - IP65 - WF2 |
| Lightning Protection | 6KV |
| Material | Aluminum + Tempered Glass |
| IP Rating | IP65 |
| Finish | Painting Yellow / Grey |
| Mounting | Ceiling / Boom / Bracket / Wall / Flange / Guardrail |
| Certification | ATEX, CE, ROHS, CCC |
| Lifetime | 50,000 Hours |
| Operating Temperature | -40°C to +60°C |
The RFEPL8280 series combines ATEX-certified safety with LUMILEDS LED efficiency. Each unit is factory-tested for explosion-proof integrity, photometric performance, and 500-hour salt spray corrosion resistance. With six mounting configurations and three beam angle options, the RFEPL8280 platform adapts to the full spectrum of hazardous area lighting requirements.
For bulk pricing, OEM customization, or technical consultation, please contact our sales team.
For bulk pricing, OEM customization, or technical consultation, please contact our sales team.
