300W Explosion Proof LED Flood Light ATEX Zone 2 Hazardous Area IP65 Cost-Effective 36000lm IP65 Die-Cast Aluminum ADC12
제품 상세 정보:
| 원래 장소: | 중국 광둥 |
| 브랜드 이름: | Fins board, BOCAQ |
| 인증: | CE,ROHS,FCC,PSE,CCC,ATEX, ISO9001,BSCI |
| 모델 번호: | EPFL-300W-Z2 |
결제 및 배송 조건:
| 최소 주문 수량: | 10개 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 박스 package+ 버블 또는 맞춤화되곤 것처럼 |
| 배달 시간: | 10-15일 또는 확인 |
| 지불 조건: | T/T, 서부 동맹 |
| 공급 능력: | 5000pcs/월 |
|
상세 정보 |
|||
| 힘: | 300W | 광속: | 36000lm |
|---|---|---|---|
| 효능: | 120lm/w | 색온도: | 5000K (쿨 화이트) |
| 빔 각도: | 120° | 입력 전압: | AC 100-277V 50/60Hz |
| LED 칩: | 브리지룩스 SMD 2835 | IP 등급: | IP65 |
| 하우징 재료: | 다이캐스트 알루미늄 ADC12 | 렌즈 재질: | 강화유리 5mm |
| 작동 온도: | -30°C ~ +55°C | 인증: | ATEX II 2G Ex d IIC T6 Gb |
| 수명: | ≥50,000시간 L70 | 보증: | 5년 |
| 강조하다: | 300W explosion proof LED flood light,ATEX Zone 2 hazardous area lighting,IP65 die-cast aluminum flood light |
||
제품 설명

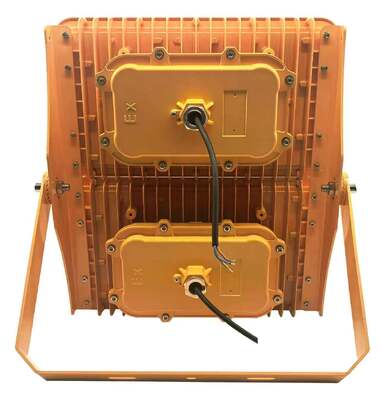

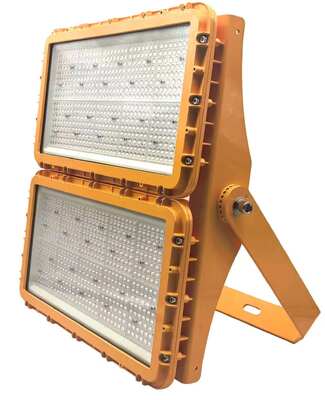

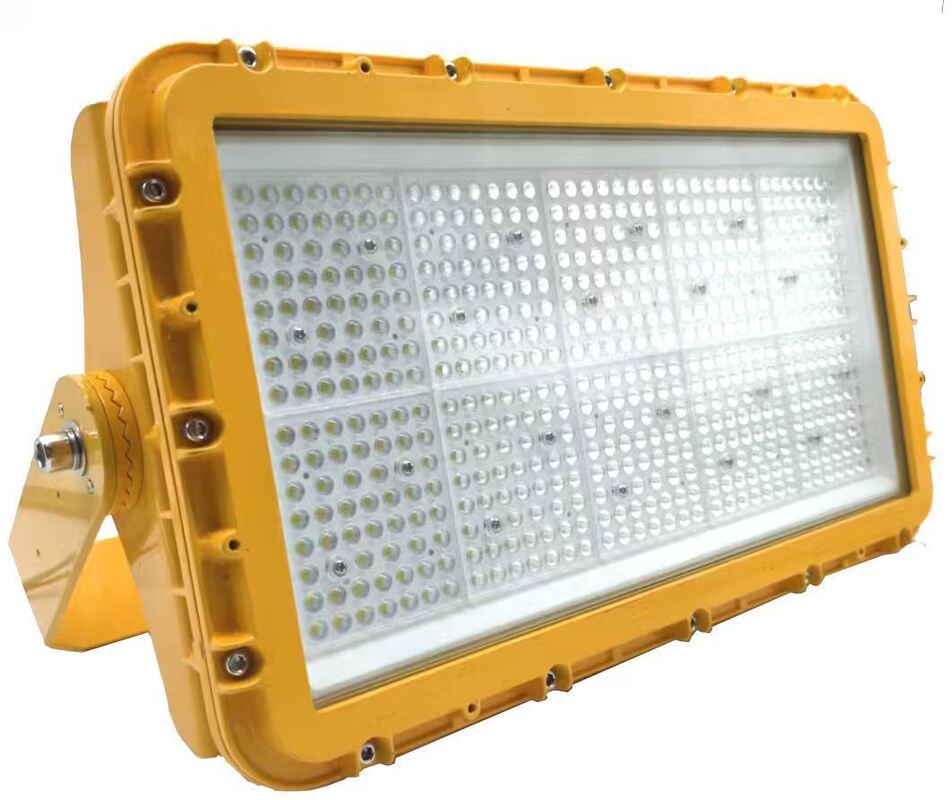

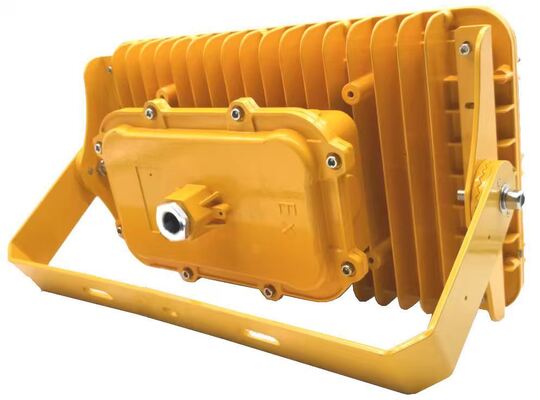

300W Explosion Proof LED Flood Light - ATEX Hazardous Area Lighting
Key Features
- 300W High Power Output - 36000lm total luminous flux with 120lm/W efficacy, replacing traditional HID equivalents with significant energy savings
- ATEX Certified - ATEX II 2G Ex d IIC T6 Gb for hazardous gas and dust atmospheres
- Robust Die-Cast Aluminum ADC12 Housing - Die-Cast Aluminum ADC12 with corrosion-resistant coating for long-term durability
- IP65 Protection - Fully sealed against environmental ingress, suitable for the harshest industrial environments
- 5mm Tempered Glass Lens - High-transmittance safety glass with impact resistance rating
- Bridgelux SMD 2835 LEDs - Premium LED chips delivering stable 5000K (Cool White) light with excellent uniformity
- 120° Beam Angle - Optimized wide-angle light distribution for large-area coverage for industrial hazardous area applications
- Universal Voltage Input - AC 100-277V 50/60Hz compatible with global electrical systems
- Multiple Mounting Options - Adjustable bracket, pole mount, and ceiling mount configurations included
- 5-Year Warranty - Backed by ≥50,000 hours L70 lifespan testing
- Cost-Optimized Design - Engineered for Zone 2 applications where gas presence is occasional, reducing total cost of ownership without compromising ATEX compliance
Applications
Ideal for hazardous classified areas including:
- Zone 2 secondary hazardous areas where cost efficiency is prioritized
- Oil refineries and petrochemical processing plants
- Offshore drilling platforms and FPSO vessels
- Chemical storage warehouses and mixing facilities
- Gas compressor stations and LNG terminals
- Paint spray booths and solvent handling areas
Technical Specifications
| Model Number | EPFL-300W-Z2 |
| Power Consumption | 300W |
| Luminous Flux | 36000lm |
| Efficacy | 120lm/W |
| Color Temperature | 5000K (Cool White) |
| Beam Angle | 120° |
| Input Voltage | AC 100-277V 50/60Hz |
| LED Chip | Bridgelux SMD 2835 |
| IP Rating | IP65 |
| Housing Material | Die-Cast Aluminum ADC12 |
| Lens | Tempered Glass 5mm |
| Operating Temperature | -30°C to +55°C |
| Mounting | Adjustable Bracket / Pole Mount / Ceiling Mount |
| Certification | ATEX II 2G Ex d IIC T6 Gb |
| Lifespan | ≥50,000 Hours L70 |
| Warranty | 5 Years |
ECER delivers explosion proof LED flood lights that combine cutting-edge LED technology with rigorous safety engineering. Each unit undergoes 100% factory testing including pressure testing of the explosion-proof enclosure and photometric verification.
For bulk orders, OEM/ODM customization, or technical inquiries, please contact our sales team.
