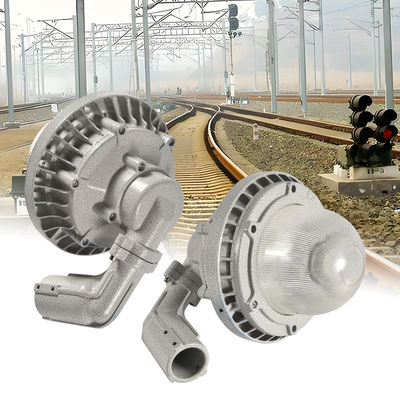

Outdoor Ip65 Waterproof Gas Station Aluminum Led Explosion Proof Light
제품 상세 정보:
| 원래 장소: | 중국 본토 |
| 브랜드 이름: | Finboard |
| 인증: | CE,ROHS,FCC,PSE,CCC,ATEX, ISO9001,BSCI |
| 모델 번호: | SMSF50-B |
결제 및 배송 조건:
| 최소 주문 수량: | 10pcs |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 박스 package+ 버블 또는 맞춤화되곤 것처럼 |
| 배달 시간: | 25-30days 또는 인증 |
| 지불 조건: | T/T, Western Union |
| 공급 능력: | 5000pcs/월 |
|
상세 정보 |
|||
| 키워드: | LED 철도 플랫폼 조명 | 전력 계수: | ≥0.95 |
|---|---|---|---|
| 빛나는 플럭스: | 3900-7800lm | 보호 수준: | IP65 |
| 색 온도: | 2700-6500K | 색상 렌더링 인덱스: | 80ra |
| 일하는 삶: | ≥50000H | 행정적 표준: | GB7000, GB 24906, GB/T 24907 등. |
| 강조하다: | IP65 waterproof LED explosion proof light,aluminum gas station explosion proof light,outdoor explosion proof lighting with warranty |
||
제품 설명
Outdoor IP65 Waterproof Gas Station Aluminum LED Explosion Proof Light
Product Attributes
| Attribute | Value |
|---|---|
| Keywords | LED railway platform lighting |
| Power Factor | ≥0.95 |
| Luminous Flux | 3900-7800lm |
| Protection Level | IP65 |
| Color Temperature | 2700-6500K |
| Color Rendering Index | 80Ra |
| Working Life | ≥50000H |
| Executive standards | GB7000,GB 24906,GB/T 24907 etc. |
Robust Construction and Safety Features
The RFEPL-8120 boasts an aircraft-grade aluminum housing paired with 5mm tempered glass, creating a virtually indestructible enclosure. The IP65 rating ensures complete protection against:
- Dust ingress in mining and industrial environments
- High-pressure water jets in port terminals and offshore platforms
- Corrosive elements in chemical processing plants
The explosion-proof design incorporates:
- Reinforced seams and gaskets to prevent gas penetration
- Spark-free electrical components
- Thermal management to prevent overheating
Advanced Optical Performance
Utilizing high-efficiency SMD2835/3030 LEDs, these fixtures achieve:
- 100-110 lm/W luminous efficacy (30% higher than industry average)
- 5500-6500K color temperature for optimal visibility
- CRI ≥80 for accurate color rendering in critical applications
The optical system features:
- Precision-engineered reflectors for uniform light distribution
- Anti-glare technology to reduce worker fatigue
- 120° beam angle for wide area coverage
Specifications
| Feature | Specification |
|---|---|
| Model | Industrial LED Explosion-Proof Light |
| Power Options | 120W |
| Material | Aluminum Alloy + Tempered Glass |
| IP Rating | IP65 (Dustproof & Waterproof) |
| Explosion-Proof Cert. | ATEX, IECEx (Zone 1/2, 21/22) |
| Luminous Efficiency | 100-120 lm/W |
| Color Temperature | 5500-6500K (Daylight White) |
| CRI (Color Rendering) | ≥80 (True Color Visibility) |
| Input Voltage | AC 85-265V (50/60Hz) |
| LED Chip | High-Quality Lumileds/SMD 3030 |
| Lifespan | 30,000+ hours |
| Warranty | 3 Years (Extendable to 5 Years) |
| Working Temperature | -30°C to +60°C |
| Mounting Options | Bracket, Pendant, Ceiling |
